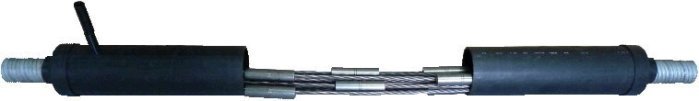

Movable Coupler BES
No.：BES
Movable coupler anchorage is used for connecting unfinished strength of strand. The characteristic is to combine multi-mono coupler as one anchorage. The length of outer protective cover could be adjusted for any design.
Strand Type ψA B C D E F G H
T13-04 100 1600 1700 130 260 w/o 120 1090
T13-07 125 1700 1800 130 260 w/o 120 1190
T13-09 160 1900 2000 160 260 260 150 1070
T13-12 160 1900 2000 160 260 260 150 1070
T13-15 200 2000 2100 190 260 260 180 1110
T13-19 200 2000 2100 190 260 260 180 1110
T13-22 250 2100 2200 210 260 260 200 1170
T13-27 315 2200 2300 230 260 260 220 1230
T13-31 355 2300 2400 250 260 260 220 1280
T15-04 100 1600 1700 150 300 w/o 150 1000
T15-07 125 1700 1800 150 300 w/o 150 1100
T15-09 160 1900 2000 200 300 300 200 900
T15-12 160 1900 2000 200 300 300 200 900
T15-15 200 2000 2100 220 300 300 220 960
T15-19 200 2000 2100 220 300 300 220 960
T15-22 250 2100 2200 250 300 300 250 1000
T15-27 315 2200 2300 260 300 300 260 1080
T15-31 355 2300 2400 270 300 300 270 1160

■Dimensions in mm

■"c"<15mm

■Subject to modification.
