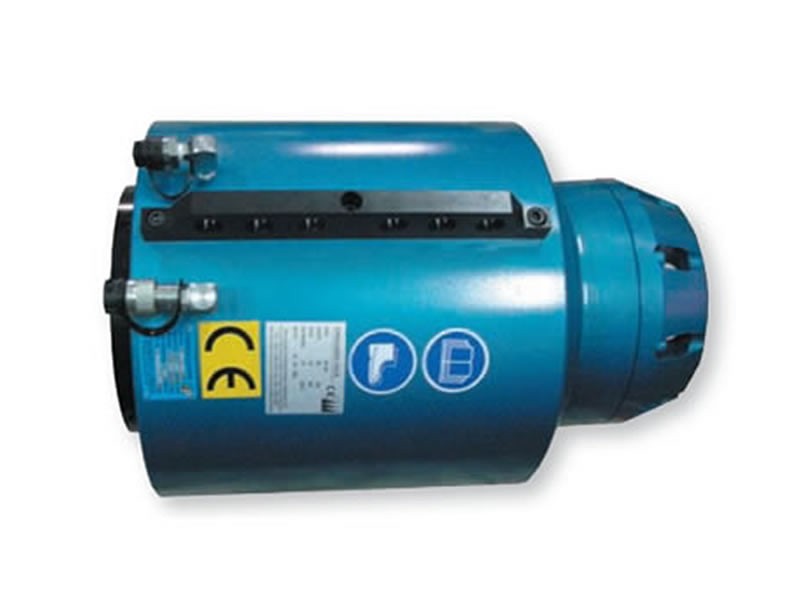

BEJ Stressing Jack

Item No. BEJ
  1. Should be operated with BE system's accessories.
  2. High effectiveness, small volume and easy operation.
  3. Stressing all strands at the same time.
  4. Should be followed as different anchorage.
  5. ODM, OEM all possible.
Spec.

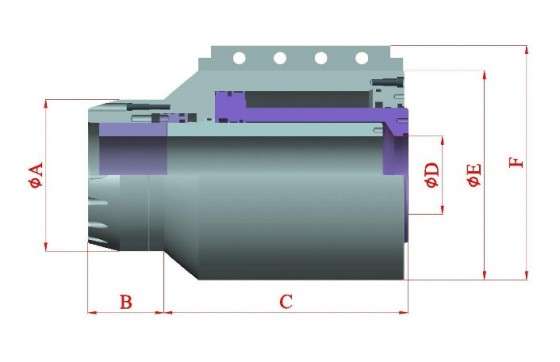

BEJ Stressing Jack
Model
No.		 ΦA
(mm)		 B
(mm)		 C
(mm)		 ΦD
(mm)		 ΦE
(mm)		 F
(mm)		 Stroke
(mm)		 Weight
(kg)		 Piston Area
(A/c㎡)		 W/P
(bar)
BEJ-75 175 100 420 75 200 265 200 92 117.81 650
BEJ-100 150 105 465 80 240 305 200 140 173.77 600
BEJ-120 150 105 465 80 240 305 200 140 173.77 700
BEJ-200 250 105 465 112 325 390 200 245 322.02 650
BEJ-300 260 110 515 142 400 465 250 385 549.78 550
BEJ-400 340 115 590 185 470 535 300 665 630.87 650
BEJ-500 350 100 600 200 490 555 300 650 804.24 650
BEJ-700 360 120 495 220 575 640 200 840 1089.35 650
JACK SELECTED FOR BE ANCHORAGE SERIES TENSILE FORCE AS
ASTM A416-98A(270K)PC STEEL STRAND：
Type No. of
strand		 Breaking Fu (KN) 0.8 Fu
(KN)		 Jack
selected		 Type No. of
strand		 Breaking Fu
(KN)		 0.8 Fu
(KN)		 Jack
selected
T15-01 1 260.7 208.6 YCQ30 T13-01 1 183.7 147 YCQ30
T15-04 4 1042.8 834.2 BEJ100T T13-04 4 734.8 587.8 BEJ100T
T15-07 7 1824.9 1460.2 BEJ200T T13-07 7 1285.9 1029 BEJ200T
T15-09 9 2346.3 1887 BEJ200T T13-09 9 1653.3 1322.6 BEJ200T
T15-12 12 3128.4 2502.7 BEJ300T T13-12 12 2204.4 1763.5 BEJ200T
T15-15 15 3910.5 3128.4 BEJ400T T13-15 15 2755.5 2204.4 BEJ300T
T15-19 19 4953.3 3962.6 BEJ400T T13-19 19 3490.3 2792.2 BEJ300T
T15-22 22 5735.4 4588.3 BEJ500T T13-22 22 4041.4 3233.1 BEJ400T
T15-27 27 7038.9 5631.1 BEJ700T T13-27 27 4959.9 3967.9 BEJ400T
T15-31 31 8081.7 6465.4 BEJ700T T13-31 31 5694.7 4555.8 BEJ500T

Note:

  1. The size and weight in the table are recognized under the stroke of 200mm which shall be modified upon to the revision of stroke.
  2. Any modification according to jacks’ improvement or revision
  3. Other types could be provided as requirement.
  4. Subject to modification.

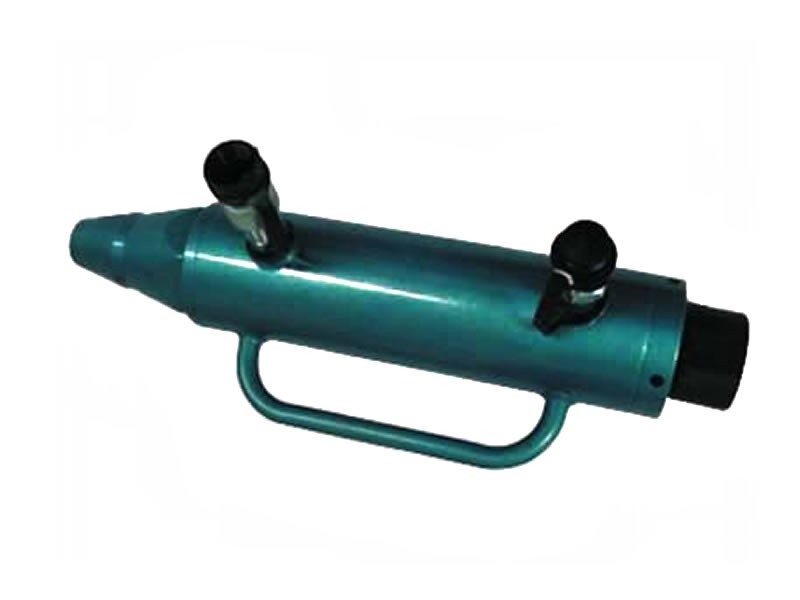

Backward pulling BEJ-type

Item No.BEJ
Model Stroke
(mm)		 Outside Dia.
(mm)		 Hole dia.
(mm)		 Retracted Ht.
(mm)		 Piston Area
(A/c㎡)
BEJ-10 150 70 17 447 17.6
BEJ-20 160 90 17 485 31.4
BEJ-30 165 105 17 535 40.4

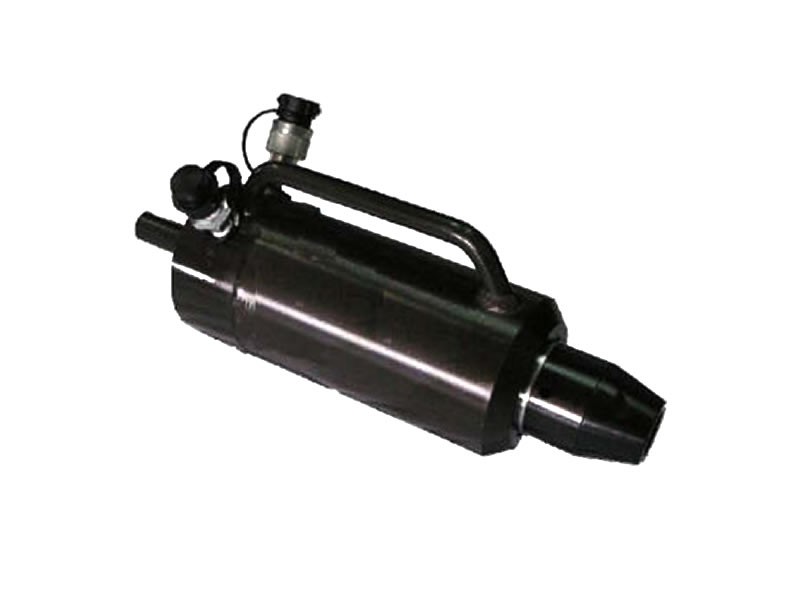

Front pulling BED-type

Item No.BED
Model Stroke
(mm)		 Outside Dia.
(mm)		 Hole Dia.
(mm)		 Retracted Ht.
(mm)		 Piston Area
(A/c㎡)
BED-3020 200 115 25 496 47
BED-3080 800 115 25 1110 47

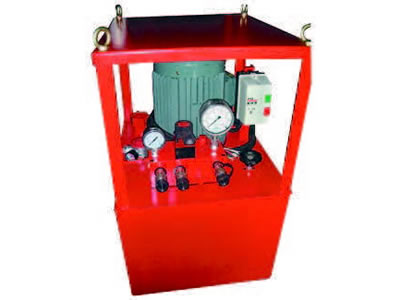

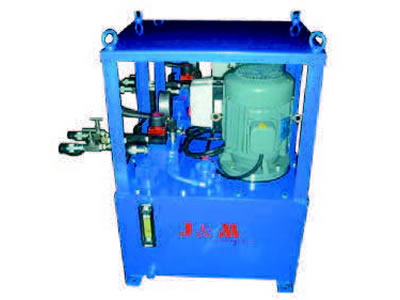

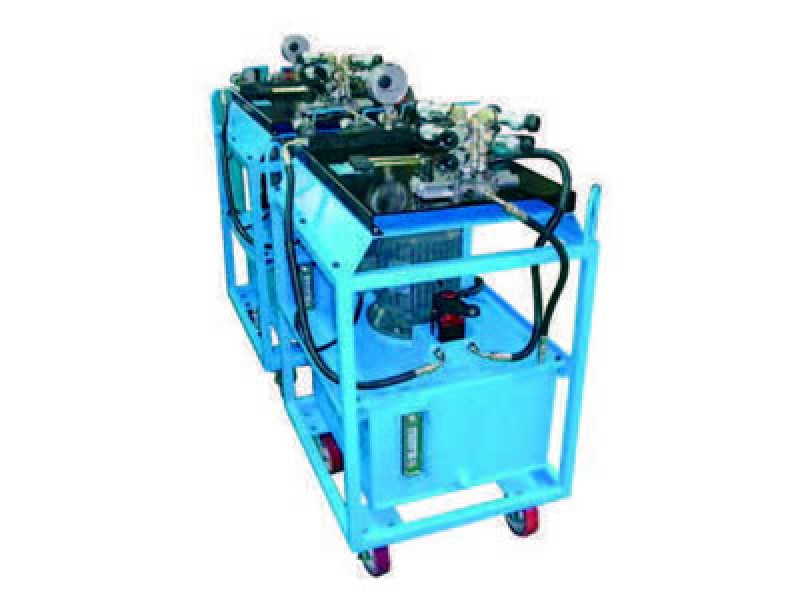

Hydraulic Pump (Power Unit)

Item No.MPE
Spec.

MPE-5

MPE-5

MPE-7

MPE-7

MPE-10

MPE-10
Model MPE-5 MPE-7 MPE-10
Horsepower (HP) 5 7.5 10
Out Flow Rate (L/Min) 4.3 5.4 6
Operation Pressure (kg/c㎡) 700 700 700
Volume 680 × 600 × 1070 680 × 600 × 1070 680 × 600 × 1070
Oil Capacity (L) 40 40 40
Pressure Gauge (kg/c㎡) 4" × 700 / 2.5" × 400 4" × 700 / 2.5" × 400 4" × 700 / 2.5" × 400
Voltage 220V × 60 Hz 220V × 60 Hz 220V × 60 Hz

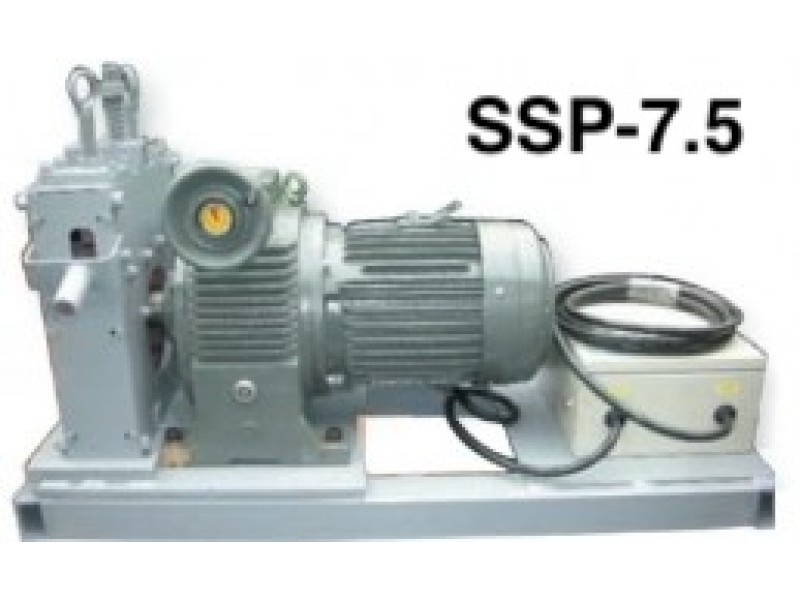

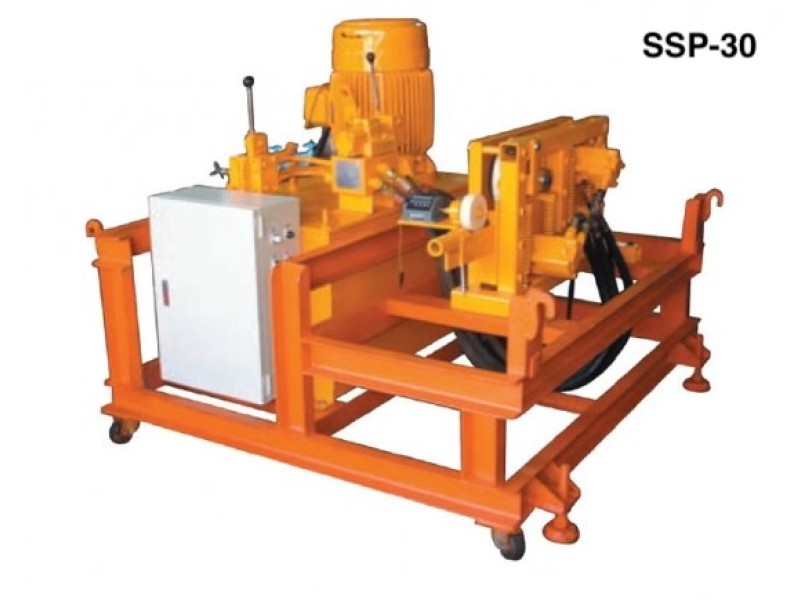

Steel Strand Pusher

Item No.BSP
  1. The pusher designed by idea of hydraulic system with low rotation rate and high torque features.
  2. The power was driven by motor which operate at a high pressure pump, then transmit through to hydraulic motors for the mechanical means.
  3. This device provides low and high speed.
  4. Operating speed from Low speed of 600RPM to high speed of 1100RPM
  5. The pusher is Capable of push over 100M at low speed and 160M in high speed.
  6. The fitting gauge showed pushing length obviously within operation.
  7. The machine is capability of adjusting and retracting the superabundant strand at low speed with ease.
  8. The strand frame produced by our company is made of most practical iron material.
  9. Assembling easily, operation without crane, practical to use, low budget and high work efficiency.
  10. Power used: 220v，3∮，60HZ，30HP.
  11. Dimension: 145/cm(H)，150/cm(W)，160/cm(L)
  12. Plus other standards for your option, 15HP and 7.5HP.
Spec.
Model BSP-7.5 BSP-15 BSP-30
Max Threading Capacity 13~16mm 13~16mm 13~16mm
Max Length threading Above 100M Above 100M Above 160M
Speed (M/min) 39M~230M/min 80M~160M/min 80M~160M/min
Horsepower (HP) 7.5 HP 15 HP 30 HP
Electricity 220V 50/60HZ 220V 50/60HZ 220V 50/60HZ
Volume (mm) 750 × 410 × 550mm 1220 × 1280 × 1000mm 1500 × 1400 × 1400mm
Weight (kg) 175kg 480kg 800kg
